SpiroTrap® Magnet Dirt Separator

Recommended for systems with ECM pumps, the Spirotrap Magnet captures dirt and debris. Ferrous material is separated using powerful magnets around the flow path.

Spirotrap Magnet Dirt Separator

The Spirotrap Dirt Separator uses our patented Spirotube® medium to "scrub” the dirt from the system fluid and creates a low velocity, low turbulence separation chamber. The universal connection supports installation in horizontal or vertical piping.

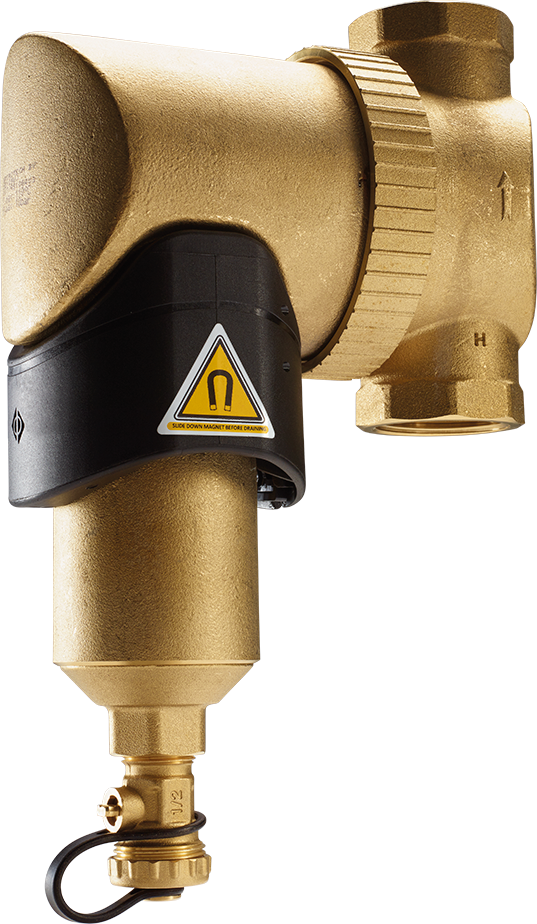

Junior TDN-M Series is available from ¾" through 2" with threaded, sweat or press fit connection and is made from sturdy brass material. Included are powerful magnets surrounding the flow path to separate ferrous material. The rotating connection allows for installation in horizontal or vertical piping.



Product Summary

  • ¾", 1", 1¼", 1½", 2"
  • Threaded, sweat or press fit
  • Strong Magnets Surrounding Flow
  • Horizontal or Vertical Installation
  • Patented Spirotube® Element
  • Solid Brass Construction
  • 20 Year Warranty

For additional details, refer to the product sheet or product brochures.
